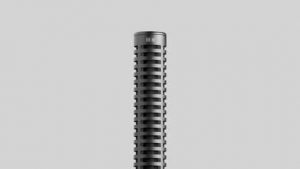

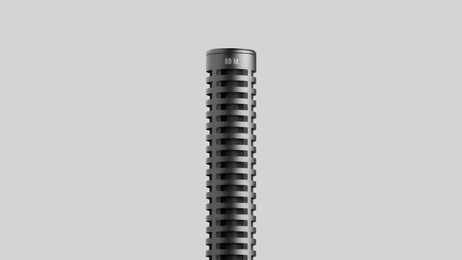

VP89 – Shotgun Microphones

The VP89 is a modular design shotgun microphone with a small footprint and easy handling. Premium preamplifier design with RF immunity.

Best suited to: Speech

Condenser Hypercardioid

The VP89 is a professional shotgun condenser microphone for use in critical broadcast and media production applications. Designed with interchangeable long, medium and short capsules, the VP89 models provide scalable, superior off-axis rejection for focus and flexibility in a wide variety of on-site locations.
Features
  • Updated Technology

    • State-of-the-art preamplifier redesign
    • Superior RF immunity
    • Internal low-frequency roll-off
    • Recessed low-cut filter switch for additional control
    • Smaller footprint
    • Superior Shure design and rugged, roadworthy construction
  • Modularity

    • Long, medium and short cartridge/barrel housings

      • Long – for focusing/targeting sound sources over long distances (sporting events, ENG, wildlife, field recording)

        • Extremely narrow pickup angle
        • Unmatched quality of off-axis rejection
    • Medium – wider target aperture for greater degree of ambience (Audience response; talk shows, live concerts)

      • Narrow pickup angle
      • Unmatched quality off-axis rejection
    • Short – High volume, widest aperture – greatest ambience, near-field target range (camera mounting; discrete mounting)

      • Wide pickup angle
      • Unmatched quality of off-axis rejection
    • Carrying case and foam windscreen included
  • Full Range of Complementary Accessories

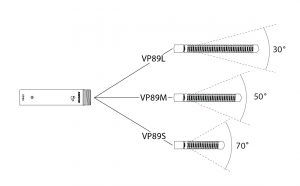

  • Pick up angle:

vp89_angle

VP89S – Short Shotgun Microphone with Case and Foam Windscreen

  • For near-field target range (camera mounting or discrete mounting)
  • Wide pickup angle
  • Unmatched quality off-axis rejection for low ambience

VP89M – Medium Shotgun Microphone with Case and Foam Windscreen

  • For pick-up of audience response, talk shows, live concerts
  • Narrow pickup angle
  • Unmatched quality off-axis rejection for very low ambience

VP89L – Long Shotgun Microphone with Case and Foam Windscreen

  • Targeting sources over long distances (sporting events, ENG wildlife field recording)
  • Extremely narrow pickup angle
  • Unmatched quality off-axis rejection for extremely low ambience





  • Technical Data



    Transducer Type Condenser
    Polar Pattern Hypercardioid
    Sensitivity (dBV/Pa) -33.5 dBV/Pa
    Equivalent Selfnoise 15.0 dB
    Weight VP89L: 174 g; VP89M: 138 g; VP89S: 117 g


  • Downloads

    PDF VP89 User Guide
    English
